Santron PC based Wireless Uroflowmeter
Santron Digital Uroflowmeter, that is used to measure and analyise Urine Stream. The offered uroflowmetry is manufactured by our proficient professionals from optimum quality components and advanced technology. In order to ensure quality, this uroflowmetry is stringently checked on various parameters.
Specifications & Features:-
Interfaced to any PC with Windows operating system.
Connectivity : USB
Software Windows 7 / 8 / 10
Printing on any PC compatible Printer Colour or B&W.
Volume : 0-1000 ml measurement Flow rate : 0-50 ml/sec
Accuracy : +/- 2%

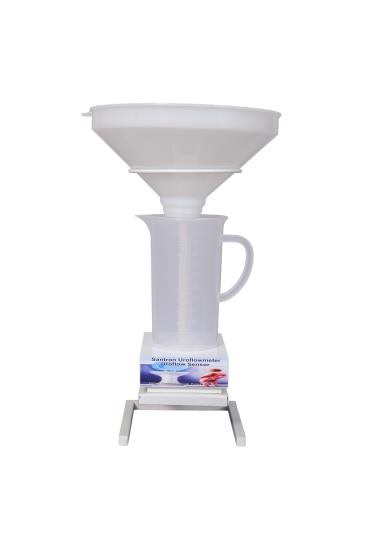

Sensor : Gravimetric (weight) type
Modes of measurement : Auto mode & Hesitancy Mode
Successive test can be taken without the need to, empty the jar after every test.
output report : Flow rate v/s time graph & Volume v/s Time graph
Output parameters : Voided Volume , Average Flow rate , Max. Flow rate ,
Computed Max. Flow rate ,Voided Time , Flow time , Max. Flow Time ,
Delay Time ( Hesitancy time ), Computed Average Flow rate , Interval Time.
Nomograms in output report : Average flow rate v/s Volume and Max. Flow rate V/s Volume
All test along with patient information is stored on the Hardisk and can be recalled whenever necessary
Color / B&w printouts on any PC compatible printer.
Sensor not connected " and " Jar Full " Display on the PC .
Fully Automatic with auto start & Stop .
Max. Measurement Duration : 180 seconds.
Long sensor cable that helps, patient to void in privacy so as to avoid psychosomatic side effect which might influence measurement results ( for Wired Model )
On screen Comparison of 2-3 graphs of patient’s Uroflowmeter reports
